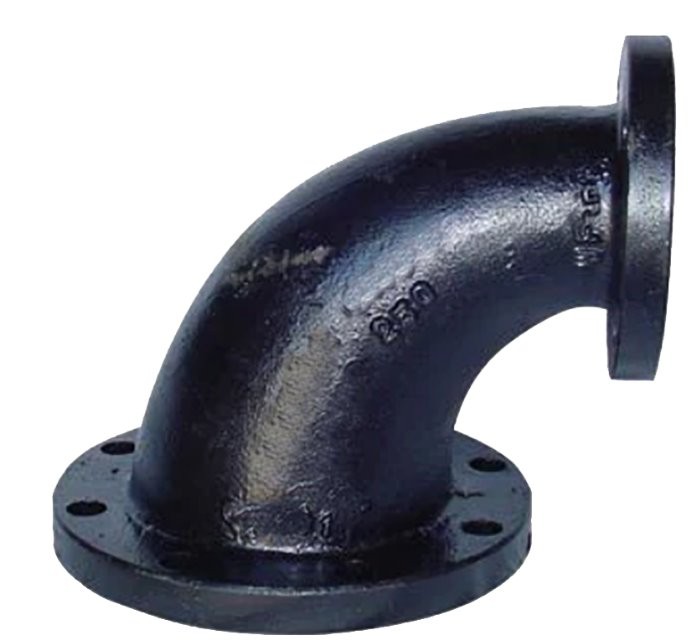

Double Flanged Reducing 90 Bend is new design products for our company. It is different with Double Flanged 90 Bend. But the feature and function is the same as it. Both of them are the main products.
We have some patterns for Double Flanged Reducing 90 Bend. If you have any other requirment, don't hesitate to contact us.
Below is the size for Double Flanged Reducing 90 Bend:
DN | L | Mass (kg) | |
PN10 | PN16 | ||
100*80 | 180 | 11.50 |
|
150*100 | 220 | 17.00 |
|
200*150 | 260 | 28.00 |
|
250*200 | 350 | 46.20 |
|
300*200 | 400 | 54.70 |
|
400*300 | 500 | 110.50 |
|
2 MATERIAL:
Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083.
FLANGE：PN10，PN16 or PN25 drilling in accordance with ISO 7005-2/EN 1092-2.
FLUID TEMPERATURE:0°C-50°C， excluding frost.
COATING：
External coatings:
zinc coating +bitumen painting;
liquid epoxy painting;
epoxy applied by FBE；
according to customers' requirements.
Internal coatings:
cement mortar lining;
liquid epoxy painting;
epoxy applied by FBE；
according to customers' requirements.
REFERENCE RULES:
Dimensions and testing in accordance with ISO 2531/EN 545.
USE：Jointed by the bolts, nuts and sealed by the gaskets.
Note：the gaskets, bolts & nuts are supplied respectively with the fittings usually.
