Product Description

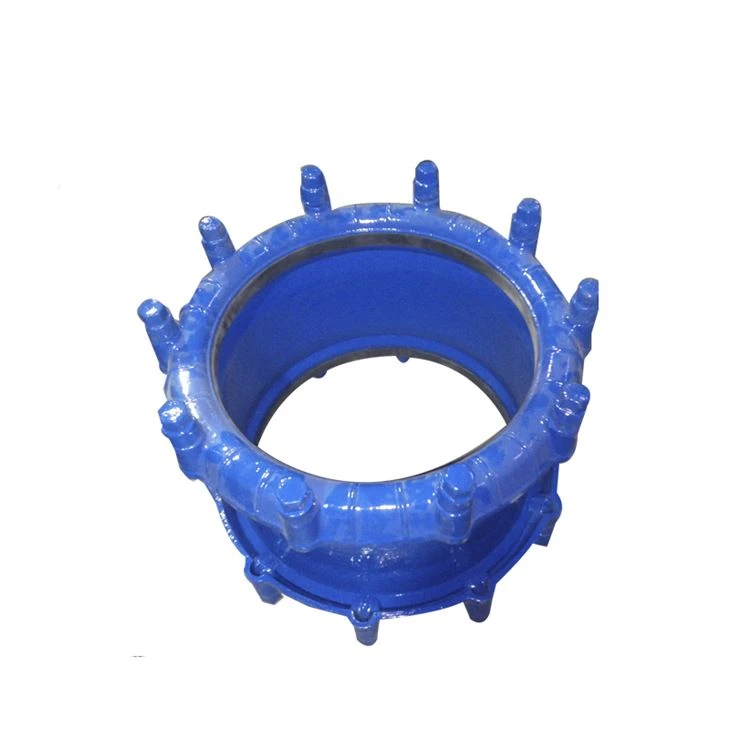

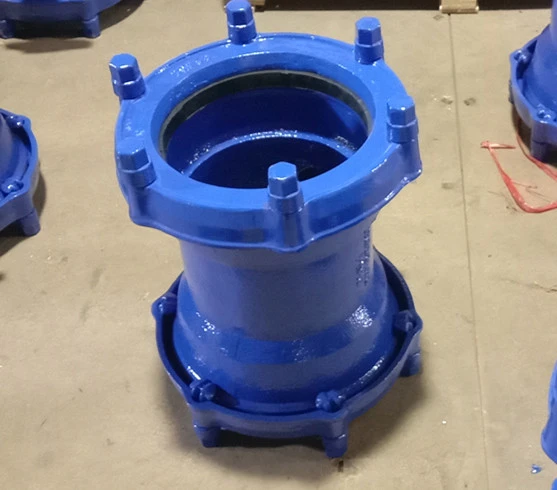

We are a professional enterprise engaged in the development, manufacture and production of Double EX Socket Collar. This EX joint can prevent the assembled joint from separating, and allows greater angular deflection during and after installation, and can accept a slight deviation of the center line. The inner cement mortar lining and the outer galvanized layer further extend the service life. We can also customize the product according to the customers' requirements.
Advantages
The Double EX Socket Collar has good impact resistance. The loose flange on the pipe can be freely rotated around the pipe axis before being connected, which is more convenient to install. It can be used in water supply project, drainage, sewerage, Irrigation ,water pipeline and so on. If you have a specific requirement for this Double EX Socket Collar, please contact us, we would be happy to discuss your requirements in details.
DN | L | Mass without glands (kg) | Mass with glands (kg) | Mass completely (kg) |
60 | 289 | 7.00 | 12.00 | 13.68 |
80 | 301 | 8.90 | 14.50 | 17.02 |
100 | 305 | 10.60 | 16.60 | 19.12 |
125 | 316 | 13.20 | 19.80 | 22.32 |
150 | 322 | 15.60 | 23.80 | 27.16 |
200 | 339 | 26.50 | 36.90 | 41.10 |
250 | 338 | 33.40 | 44.20 | 49.24 |
300 | 343 | 41.40 | 57.80 | 63.68 |
350 | 346 | 49.90 | 67.90 | 74.62 |
400 | 355 | 57.50 | 79.90 | 87.46 |
450 | 366 | 71.00 | 109.00 | 115.72 |
500 | 373 | 84.00 | 124.00 | 134.00 |
600 | 387 | 116.00 | 169.00 | 181.00 |
