Product Introduction

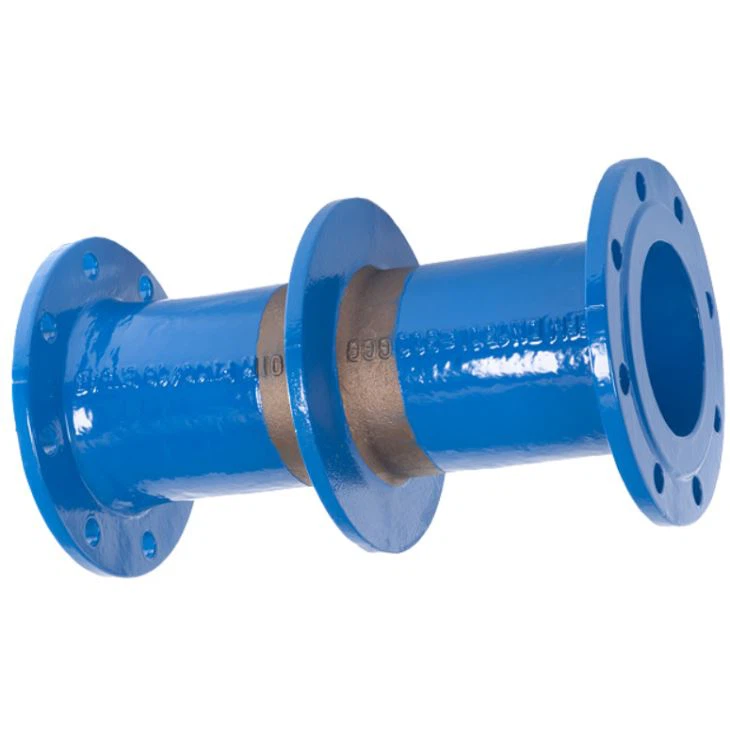

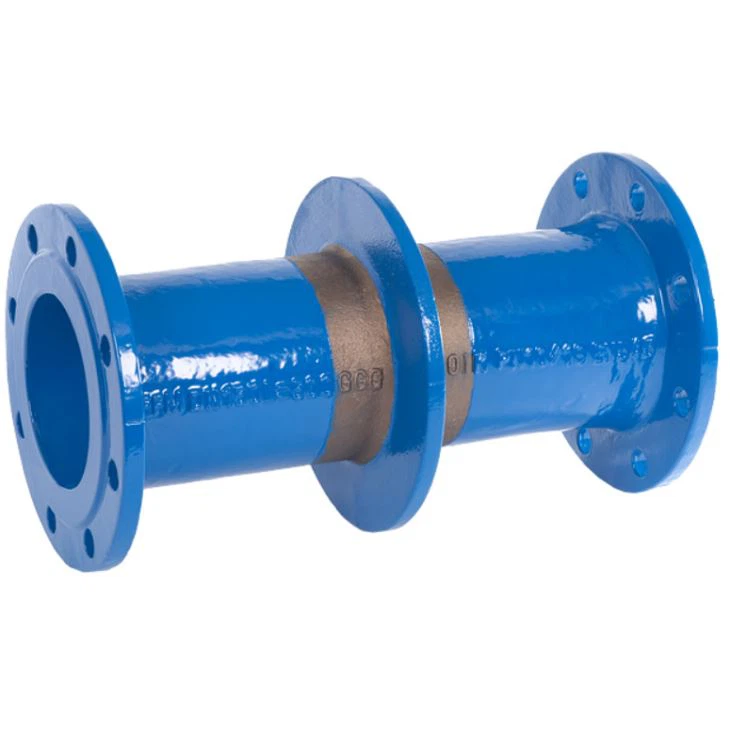

The Double Flanged Pipe with Puddle Flange has flanges at both ends and is connected with nuts and bolts. It is usually made of cast iron and is very hard. And its surface is painted or painted with special coatings to enhance its performance. Our flanges are available in a wide range of sizes from 40 to 600mm. The Double Flanged Pipe with Puddle Flange is suitable for installation in ground and exposed facilities, such as pump houses, water/sewage treatment plants, etc.
Features
Compared with other similar products, our Double Flanged Pipe with Puddle Flange has many advantages, such as stable performance and reasonable price, etc. It can be connected with pipe fittings in a variety of ways, such as twisted wire, socket, welding, etc., which saves labor and effort. In addition, its interior is also treated, very smooth and not easy to scale, therefore the water flow can always remain stable even if it is used for a long time.
Specification
DN | L | Mass (kg) | standard | |
PN10 | PN16 | |||
40 | 500 | 10.5 | 10.5 |
|
50 | 400 | 12 | 12 | |
500 | 12.4 | 12.4 |
| |
600 | 13.5 | 13.5 |
| |
800 | 15 | 15 |
| |
1000 | 17.7 | 17.7 | ||
60 | 500 | 13.6 | 13.6 |
|
600 | 15.5 | 15.5 |
| |
65 | 400 | 13 | 13 |
|
500 | 14.4 | 14.4 |
| |
600 | 15.5 | 15.5 |
| |
80 | 200 | 12 | 12 | |
400 | 15.20 | 15.20 |
| |
500 | 17.20 | 17.20 |
| |
600 | 18.40 | 18.40 |
| |
750 | 19.20 | 19.20 |
| |
800 | 21.70 | 21.70 |
| |
1000 | 24.90 | 24.90 |
| |
1500 | 33.00 | 33.00 |
| |
2000 | 41.10 | 41.10 |
| |
100 | 300 | 17.00 | 17.00 |
|
400 | 18.00 | 18.00 |
| |
500 | 20.00 | 20.00 |
| |
600 | 22.00 | 22.00 |
| |
700 | 24.00 | 24.00 |
| |
750 | 25.00 | 25.00 |
| |
800 | 26.00 | 26.00 |
| |
1000 | 30.00 | 30.00 |
| |
1500 | 41.20 | 41.20 | ||
2000 | 50.00 | 50.00 | ||
125 | 400 | 22.30 | 22.30 |
|
500 | 24.80 | 24.80 |
| |
800 | 32.50 | 32.50 |
| |
150 | 400 | 27.40 | 27.40 |
|
500 | 30.50 | 30.50 |
| |
600 | 32.10 | 32.10 |
| |
750 | 38.40 | 38.40 |
| |
800 | 40.00 | 40.00 |
| |
1000 | 46.30 | 46.30 |
| |
1500 | 62.20 | 62.20 | ||
200 | 400 | 38.00 | 37.40 |
|
500 | 42.40 | 41.80 |
| |
600 | 47.30 | 47.00 |
| |
700 | 51.70 | 51.40 |
| |
750 | 53.40 | 52.90 |
| |
800 | 55.60 | 55.00 |
| |
1000 | 64.40 | 63.70 |
| |
1500 | 86.50 | 86.00 |
| |
250 | 400 | 52.20 | 51.00 |
|
500 | 58.10 | 56.90 |
| |
600 | 64.00 | 62.80 |
| |
700 | 69.30 | 68.10 |
| |
800 | 75.70 | 74.50 |
| |
1000 | 87.40 | 86.20 |
| |
300 | 400 | 67.80 | 66.60 |
|
500 | 74.80 | 73.60 |
| |
600 | 82.20 | 81.00 |
| |
750 | 93.40 | 92.20 |
| |
800 | 97.20 | 96.00 |
| |
1000 | 113.00 | 112.00 |
| |
350 | 600 | 99.00 | 105.00 |
|
800 | 115.00 | 121.00 | ||
1000 | 136.40 | 137.50 | ||
400 | 500 | 109.70 | 120.70 |
|
600 | 119.70 | 130.70 |
| |
800 | 149.10 | 160.10 |
| |
1000 | 164.70 | 175.70 |
| |
500 | 500 | 144.20 | 189.40 |
|
600 | 158.00 | 203.20 |
| |
700 | 184.20 | 214.60 |
| |
800 | 191.60 | 236.40 |
| |
1000 | 220.20 | 265.40 | ||
600 | 600 | 236.90 | 289.00 | |
1000 | 325.00 | 372.00 |
| |
