Features

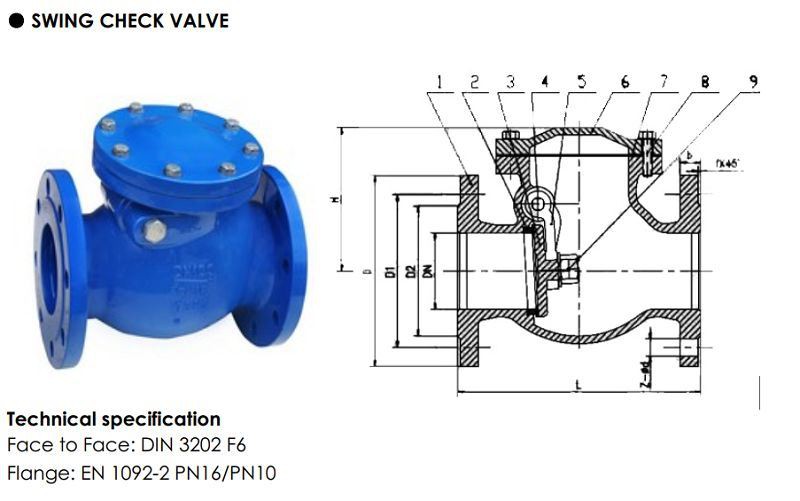

Swing check valve is a standard swing check valve, which can block the backflow of medium in the pipeline. All start stop components are installed in the valve, which can effectively avoid leakage. Swing check valve has a beautiful appearance, and the valve seat sealing ring is cast bronze with good sealing performance. There is a spherical connection structure to provide micro position compensation.
Below is FAQ for Swing Check Valve
Q1 :Can you offer sample service?
A1 :Yes,we can offer the sample.
Q2 ：How about your after-sale service?
A2 : We have a professional sales team to accurately understand your needs before the sale and try to avoid problems. After-sales,if you have any questions about the product, you are welcome to consult.
Advantage
Swing check valve is suitable for installation between flanges, mainly for one-way flow pipes. In addition, due to the flow direction of the medium, it should be installed horizontally. Moreover, it can be opened or closed automatically according to the flow rate of the medium, with strong initiative. The switch parts are installed inside the valve body, so that there is no leakage point, which greatly improves the product performance. Finally, its limit device can largely avoid the failure caused by the high position of the disc when the stop valve is closed.
Size: DN50-DN600
Pressure Rating: PN16, Class 150
Temperature: Max. 120°C
Face to Face: ASME B16.10
Flange Drilling: PN16, ANSI150
Material Specification:
Body: Gray Iron/Ductile Iron
Cover: Ductile Iron
Disc: Ductile Iron
Hinge Pin: Stainless Steel
Disc Seal: EPDM
